NEXTEEL – API line pipe, casing & tubing manufacturer Excellence in heavy wall ERW pipe
Nexteel specialize in manufacturing general steel pipe products and forming products, demanded by a wide spectrum of industries including Oil & Gas Pipe, auto, ship, construction and machinery sectors. With the conviction that Nexteel products play a vital role in the development of various industries , Nexteel is dedicated to manufacturing quality products with sincerity and an artisan spirit.
In order to meet the demands of various customer, Nexteel is equipped with automatic coating facility and our full line-up of products are always ready for delivery at the customer's request.
Nexteel promise that, by manufacturing quality products and providing them more swiftly and economically, Nexteel will lead the future of the steel industry with their expertise as coil service center and a provider of steel pipe and forming products.
Nexteel Co., Ltd. recently established the new pipe production lines at Pohang #2 Plant. New mills produce various steel pipes including mechanical DOM tubes, API Line Pipe and OCTG based on worldwide superior quality control system certified by ISO9001 and API Q1 standards.
One of features at Pohang #2 plant is to produce ultra-heavy wall thickness pipes. We can produce up to 20-26%(t/D). We focus on these products for API pipe and tube and mechanical tubing to substitute seamless with ERW production for better dimensional tolerance in wall thickness and outside diameter.
NEXTEEL CERTIFICATIONS
Nexteel has several features in our equipment’s. First, we apply to new technology "Quick Change System" on 8" line which provides ten times faster than current roll changing system used by most of pipe mills. This provides small quantity production and good productivity for better service and competitiveness.
Secondly, we have a new hydrostatic test equipment to accommodate up to 7,000psi(511bar) test pressure for high quality pipe. Thirdly, we have state of art Off line full body ultrasonic inspection unit and Weld seam ultrasonic inspection unit to satisfy the customer's demand for quality products. Lastly, we apply to auto packing system to expedite our productivity and provide good surface condition.
State of Art Facility
- On / Off line UT system New digital multi-channel(10 channel) and phased array system guaranteeing the most accurate and reliable test.
- 3-Head type hydrostatic tester Measure up to maximum pressure of API Specification. (Capable of 7,260 psi (511bars))
- 4 Seam annealing system Four 500KW annealers guarantee the full heat penetration into weld seam to make welding stress relief perfect.
- Robotic auto bundling system It Maintainins neat and uniformed pipe appearance with maximum production efficiency.
- Quick change system Having 4 additional forming sub-plate bases with stands for quick change.
POSCO
The world's fifth-largest steelmaker. The most competitive steel mill in the world. (NEXTEEL is No.1 domestic buyer for POSCO API HR coil of J55, X60, X80 etc.)
NEXTEEL Facility - Video

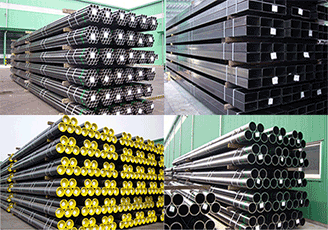

PRODUCTS SUMMARY
| Classification | Description | Usage | Related Spec. | Grade |
|---|---|---|---|---|
| Oil & Gas Pipe | Casing & Tubing | Petroleum and Natural gas industries use as casing & tubing for wells | API 5CT | J55, N80, NEXT80, L80, P110, Q125 |
| Line Pipe | Conveying for Oil & Natural gas | API 5L | B ~ X80 | |
| Ordinary Pipe | Carbon steel pipes For ordinary piping | Conveying for low pressure water, gas, vapor, air and oil | KS D 3507 | SPP |
| JIS G 3452 | SGP | |||
| ASTM A53A | A | |||
| Carbon steel pipes For pressure service | Pressure service for under 350 Bar | KS D 3562 | SPPS | |
| JIS G 3454 | STPG | |||
| ASTM A53B | B | |||
| Carbon steel pipes For fuel gas piping | Conveying for fuel gas | KS D 3631 | SPPG | |
| Structural Purpose | Carbon steel pipes for general structural purpose | Civil engineering and Construction industries and steel tower, etc | KS D 3566 | STK |
| JIS G 3444 | STK | |||
| ASTM A500 | A,B,C,D | |||
| Carbon steel square and rectangular for structural purpose | Civil engineering and Construction industries and steel tower, etc | KS D 3568 | SPSR | |
| JIS G 3466 | STKR | |||
| ASTM A500 | A,B,C,D | |||
| Mechanical Tubing | Tubes for mechanical structural purpose | Parts of Automobile industries, Shipping industries and heavy equipment | KS D 3517 | STKM |
| JIS G 3445 | STKM | |||
| ASTM A513 | TYPE1 |
CAPACITY
| Facilities | Thickness (mm) | O.D. (mm) | Line Speed (m/min) | Capability (ton/year) |
|---|---|---|---|---|
| 16¡± Pipe Line | 3.2 ~ 19.0 | 177.8 ~ 406.4 | 15 ~ 40 | 240,000 |
| 8¡± Pipe Line | 2.9 ~ 18.0 | 60.3 ~ 219.1 | 22 ~ 80 | 170,000 |
| 4¡± Pipe Line | 2.1 ~ 13.5 | 21.7 ~ 114.3 | 25 ~ 100 | 120,000 |
| 3¡± Pipe Line | 0.8 ~ 5.5 | 12.7 ~ 60.5 | 20 ~ 120 | 25,000 |
